Juniper Systems Geode GNS3
Scalable, Real-Time Sub-metre to Centimetre L-Band GNSS Receiver
Perfect for utility locators, drainage surveyors, and GIS professionals
The Geode GNS3 is the ultimate "bring-your-own-device" GNSS solution. Designed for complete versatility, it delivers professional-grade positioning data wirelessly to your existing Apple, Windows, or Android devices. Whether you need sub-metre accuracy for general mapping or centimetre-level RTK precision for demanding STC25 surveys, the Geode provides reliable, real-time data in a compact, one-button, ultra-rugged design.
Key Features

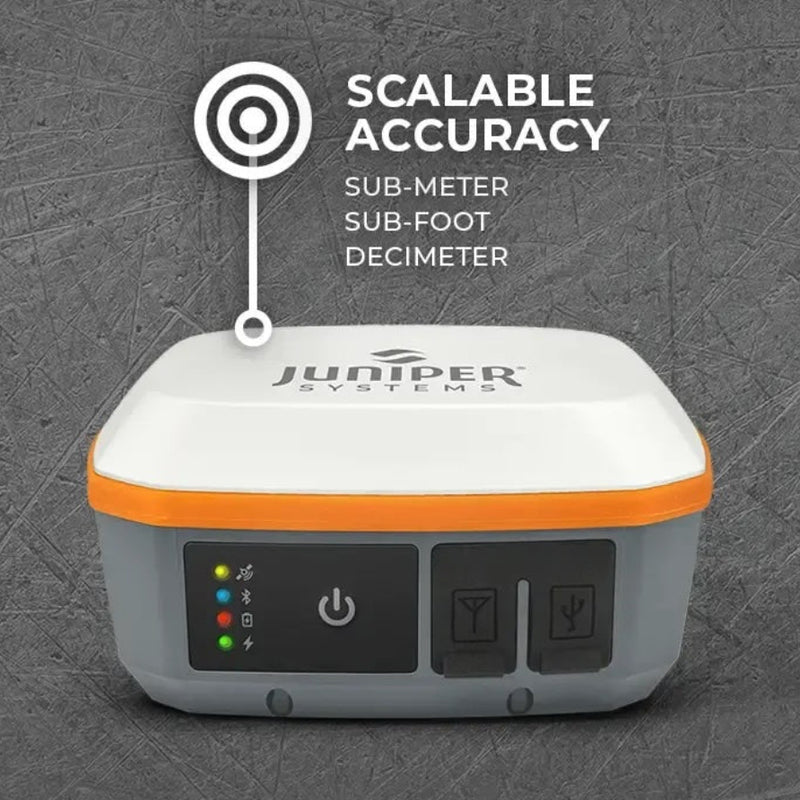

Scalable Precision
Options ranging from Sub-metre (<30cm L-Band) to Centimetre (~1cm RTK) accuracy.
Universal Compatibility
Seamless Bluetooth connection to iOS, Android, and Windows devices.
STC25 Ready
Perfect for capturing highly accurate cover and invert levels.
FREE GALHAS ACCURACY
The GNS3H model supports Galileo High Accuracy Service for subscription-free, 20cm precision anywhere in the world.
Juniper Rugged™
IP68-rated for complete dust and water resistance.
Features
The Geode tracks multiple satellite constellations across multiple frequencies through its 800+ channel architecture. Depending on your project, accuracy can be scaled from sub-metre SBAS down to RTK centimetre-level precision. Crucially, the Geode GNS3H model fully supports the new Galileo High Accuracy Service (GALHAS). This revolutionary feature delivers ~20cm precision directly from space - meaning you get incredible accuracy in the field without needing a mobile data connection or paying for expensive RTK network subscriptions.
Simplify your manhole, drainage, and utility network mapping. By delivering highly accurate RTK elevation and positional data straight to your preferred inspection software, the Geode is the ideal hardware partner for completing compliant STC25 surveys quickly and reliably.
No need to buy proprietary data collectors. The Geode connects seamlessly via Bluetooth to almost any Apple, Android, or Windows smartphone or tablet. It is entirely app-agnostic, meaning it works flawlessly with third-party software like Esri Field Maps, QGIS, or your own bespoke surveying applications.
Never get caught short in the field. The Geode features an internal "Overtime Technology" battery that provides 16+ hours of continuous use on a single charge, easily lasting through long surveying shifts.

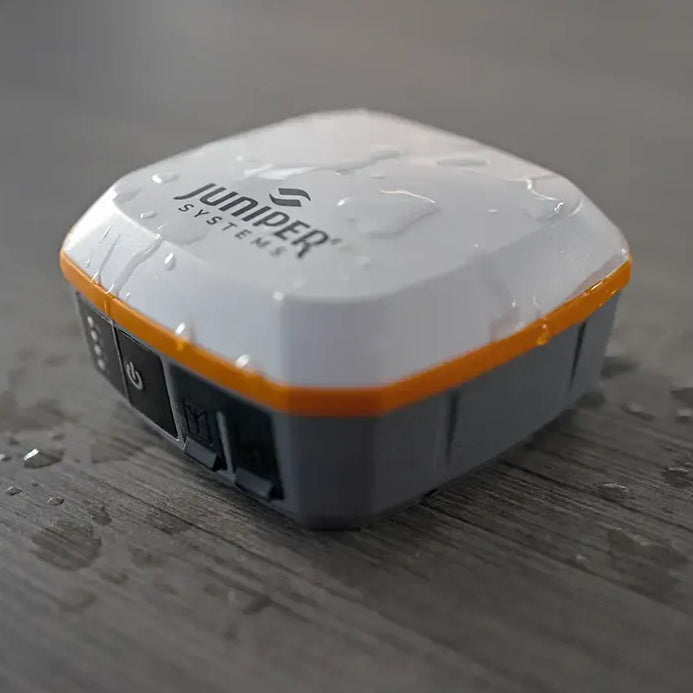

Work with absolute confidence in British weather. The Geode is built to Juniper’s legendary rugged standards. It carries an IP68 rating, making it completely dust-proof and waterproof (submersible), and is MIL-STD-810G drop-tested to survive heavy impacts.
Use Cases
STC25 Manhole & Drainage Surveys

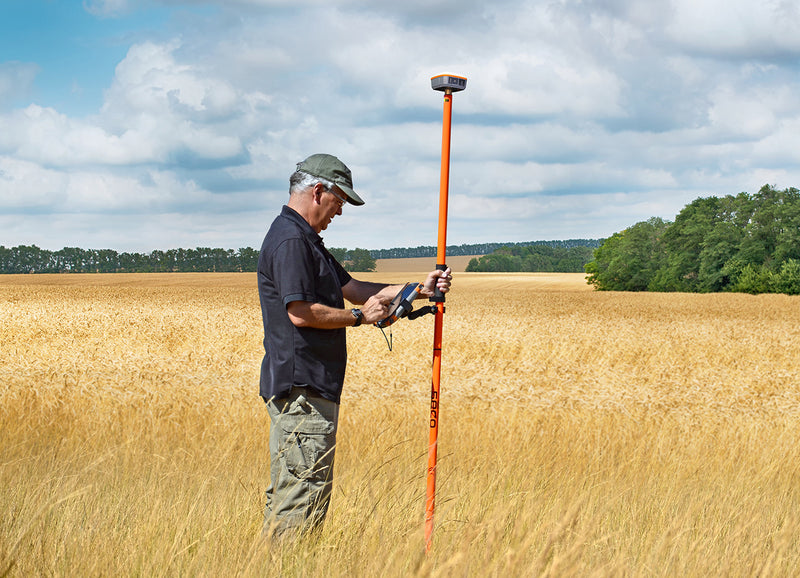

Environmental & GIS Mapping

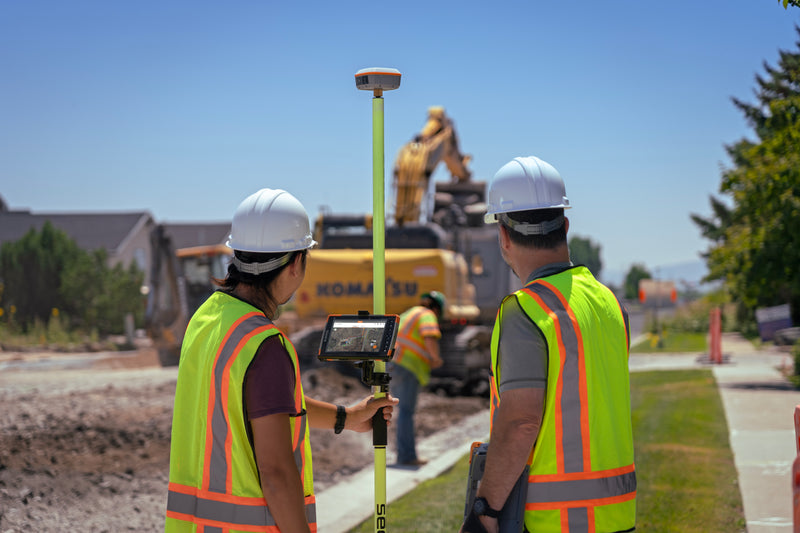

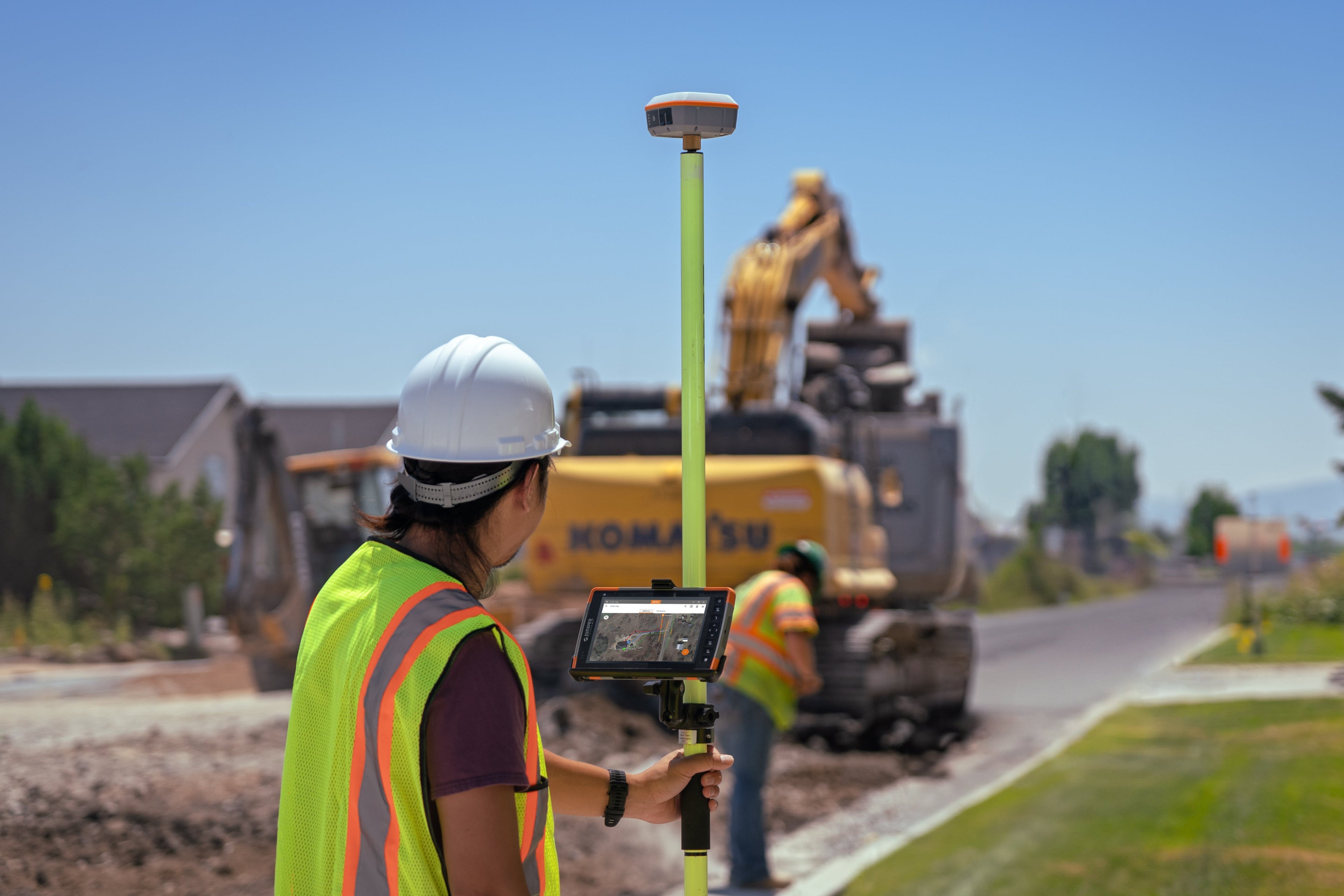

Utility Mapping & Locating
Highway Maintenance & Local Authority Asset Management

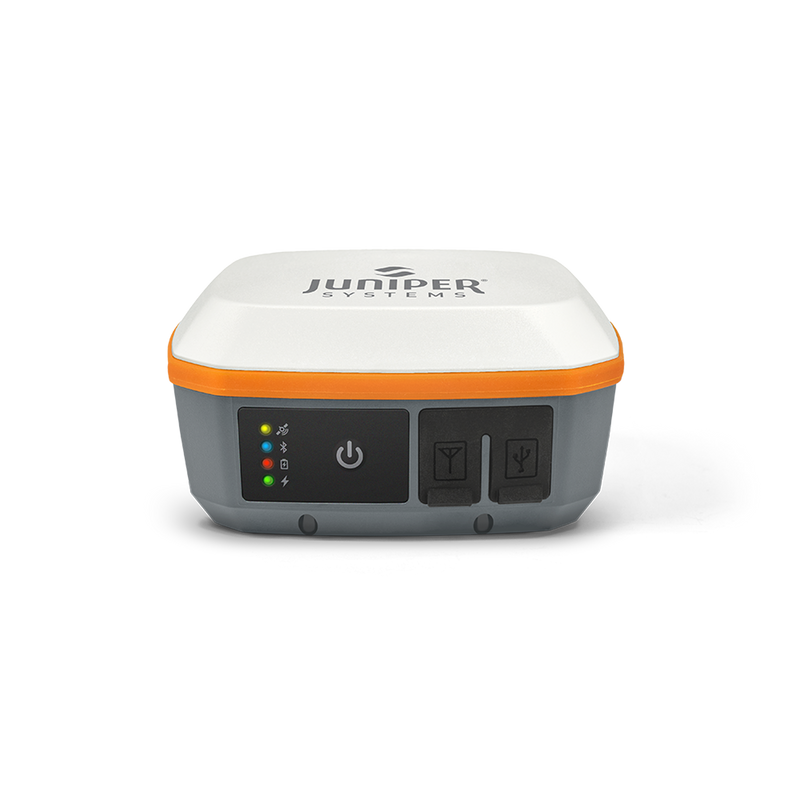

Juniper Geode GNS3
Your Location, Our Solution. Scalable Accuracy.
Positioning
- GNSS: Multi-frequency, 800+ Channels (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS)
- Precision: Sub-metre (<30cm SBAS), Decimetre (~20cm via GALHAS), up to Centimetre (~1cm RTK) options available.
- Correction Support: SBAS, NTRIP RTK, Atlas L-Band, GALHAS (GNS3H model).
Connectivity
- Wireless : Long-range Bluetooth® 5.1
- Cellular : USB-C (for charging and data), optional RS-232C Serial Port
System & Power
- Battery: Internal battery with 16+ hours of operational life
- Interface: Simple one-button operation with LED status indicators
- Weight: 360g (compact and lightweight for pole-mounting or carrying)
Durability
- Ingress Protection: IP68 (Waterproof and Dustproof)
- Drop Resistance: MIL-STD-810G (Multiple drops to concrete)
- Operating Temperature: -20°C to +60°C
Downloads & Resources
Access official documentation, manuals, and datasheets.
Download Datasheet (PDF)Frequently asked questions
What is GALHAS and do I have to pay for it?
GALHAS stands for Galileo High Accuracy Service. It is a completely free, satellite-delivered correction service. If you choose the Geode GNS3H model, you can achieve roughly 20cm positional accuracy anywhere in the world without needing a 4G mobile signal or paying ongoing subscription fees to an RTK network provider
Will the Geode work with the tablet or phone I already own?
Yes. The Geode is designed as a "bring-your-own-device" receiver. It connects via Bluetooth to virtually any modern iOS (iPhone/iPad), Android, or Windows device, allowing you to use the hardware you already know.
Is the Geode suitable for STC25 drainage surveys?
Absolutely. When configured for RTK centimetre accuracy and paired with a network correction service, the Geode provides the highly precise horizontal and vertical (elevation) data required for STC25 cover levels and inverts.
How complicated is the Geode to set up in the field?
It is incredibly simple. The Geode features a one-button design. You simply turn it on, pair it with your device via Bluetooth, open your mapping app, and start collecting data. There are no complicated menus or screens on the device itself.
