CHCNAV Apache 3
Cost-Effective Single Beam USV
Cost-Effective Autonomous USV

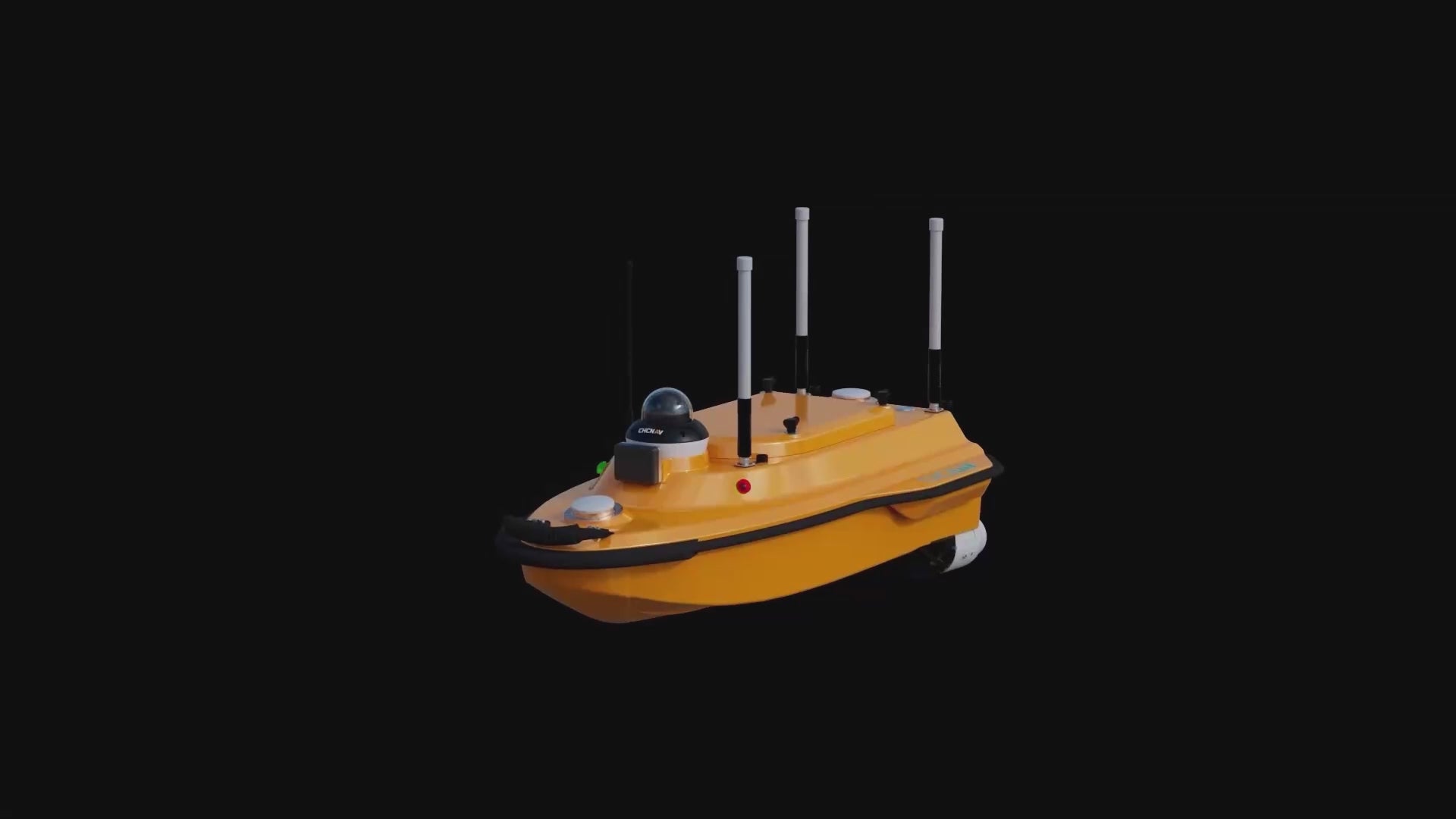

The APACHE 3 is a portable, shallow-draft marine drone equipped with a single-beam echo sounder for bathymetric surveys of lakes, inland rivers, and coastal areas. It features seamless 4G communication, dual GNSS for positioning and heading, an IMU sensor, and high-efficiency motors. The APACHE 3 autonomously follows pre-set routes, collecting accurate data even in challenging current and flow conditions.
Key Features
Lightweight
Only 7kg and 1m in length for easy transportation and operation
GNSS+INS Positioning
Precise positioning and heading, ensuring an accurate survey
4G Comms
Providing reliable data, video streaming and RTCM corrections
Android OS
Ensuring ease of usability, and support for our custom AnyDesk instance for getting you out of those tricky "it's this button!" moments
Features
The APACHE 3 USV features a one-piece molded carbon fiber hull with 10 MPa strength and 60% improved impact resistance. A reinforced aluminum cover increases structural durability, while a 30% lighter design allows for easier single-person transport and deployment.
With a 7 kg hull and total length of only 1m, the compact and lightweight APACHE 3 is easy to transport to remote survey sites. It can be operated by one person, increasing efficiency and reducing labor costs.

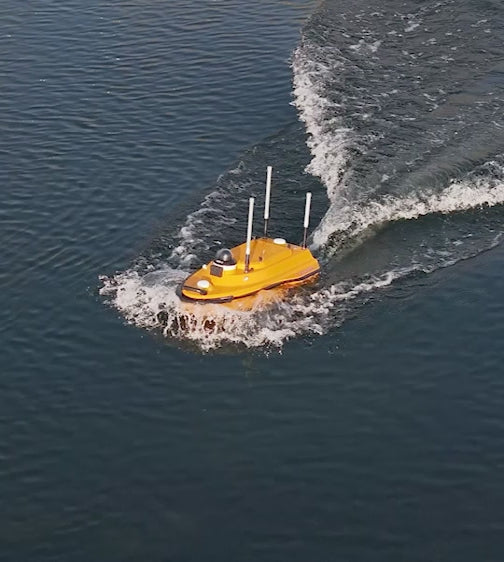

The APACHE 3 is equipped with an 800 W motor capable of reaching 7200 RPM, enabling a top speed of 6 m/s. Its battery endurance allows up to 7 hours of continuous operation at a cruising speed of 1.5 m/s. Additionally, hot-swappable batteries support uninterrupted operation in the field.
Integrated GNSS and IMU sensors provide accurate position and attitude data, compensating for hull motion in survey results. Its next-generation bathymetric algorithms support adaptive parameter adjustments, ensuring reliable performance in dynamic riverbeds and diverse aquatic environments.
The APACHE 3’s remote controller comes pre-installed with the Android-based EasySail software, removing the need for external computers. The software includes real-time video transmission, parameter monitoring, and an integrated suite for path planning, data logging, and processing.
Use Cases

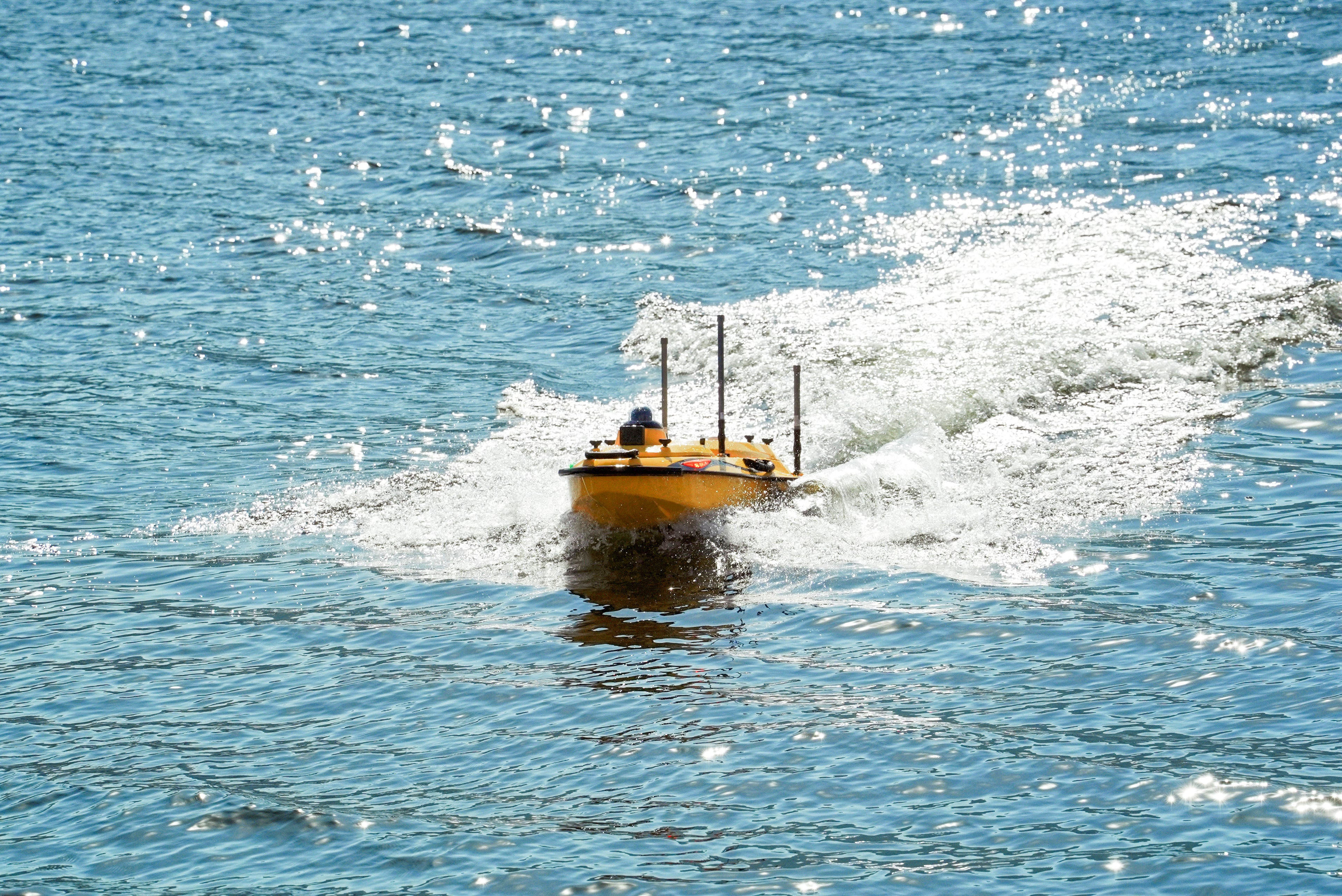

Bathymetric Surveys

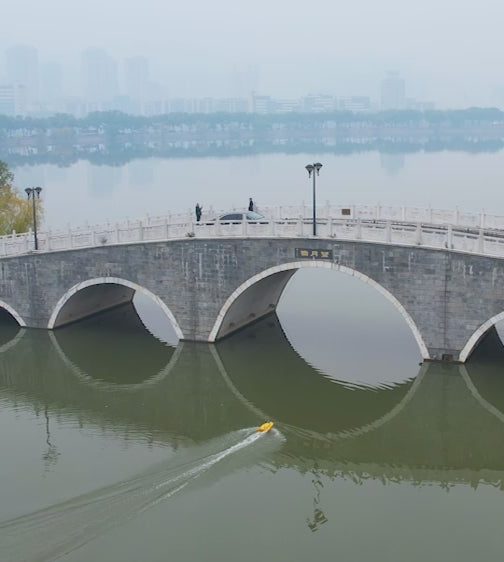

Inland Waterway Mapping
Riverbed Mapping
Reservoir Mapping

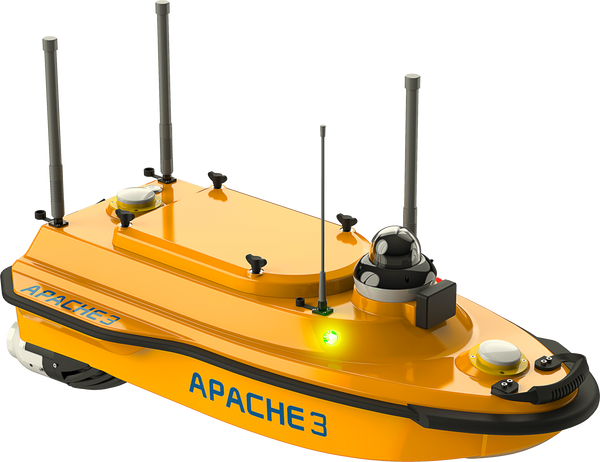

CHCNAV APACHE 3
The Most Cost-Effective Single Beam USV
Performance
- Max Speed : 6 m/s
- Payload Capacity : 35kg
- Positioning : Multi-Constellation GNSS + IMU
Echosounder
- 200Hz Single Beam
- Range : 0.1 - 200m
Sensors
- Camera : 360° video
- Obstacle Avoidance : Yes
Downloads & Resources
Access official documentation, manuals, and datasheets.
Download Datasheet (PDF)Frequently asked questions
Is a USV really a cost-effective system?
Yes. The APACHE 3 enables affordable bathymetric surveys using a single-beam echo sounder. It is designed for efficient and cost-effective data collection in lakes, rivers, reservoirs, and coastal areas.
What types of waters can the APACHE 3 operate in?
The APACHE 3 is designed for surveying lakes, inland rivers, reservoirs and small, close-to-shore coastal areas, including shallow and challenging environments.
How energy efficient are the motors?
The APACHE 3 uses DC-injection rotary motors with 40% higher energy conversion efficiency, ensuring durable and reliable performance.
What is the range of the remote control?
The APACHE 3 remote control is supported up to 1km for reliable long-range operation. With strong 4G network coverage, unlimited distance is possible.
This would be my first use of the APACHE 3, and even hydro surveying. How can PQS Tech help?
At PQS Tech, we are built on a foundation of exceptional customer support. Whether you need us to train your team to capture surveys independently, or you prefer a fully managed service where we complete the work for you, we have a solution to fit your needs.
