CHCNAV RS10 &
CHCNAV RS30
Handheld SLAM 3D Laser Scanner with RTK GNSS Receiver
Scan Smart, Survey Faster.
Master any environment with the RS10. By fusing GNSS RTK, laser scanning, and visual SLAM into a single powerhouse, this device delivers high-precision results where others can't. Whether navigating weak signal zones or transitioning between indoor and outdoor spaces, the RS10 provides the versatility needed for BIM, topographic surveying and mapping. It is the essential, all-in-one solution for expanding your surveying potential.
Key Features
GNSS RTK & SLAM
Combine RTK, laser, and visual SLAM to achieve 5cm absolute accuracy.
Real-time Geo-referencing
Real-time geo-referenced point clouds in the field.
High-Precision
1 cm relative accuracy with GNSS and LiDAR technologies.
Hot-Swappable Battery
60 minutes per battery with hot-swap capability for uninterrupted operation.
Features
Combine GNSS RTK and SLAM for unparalleled flexibility. The RS10 ensures precise data collection in areas with weak or no GNSS signals, enhancing accuracy, whether indoors or outdoor.

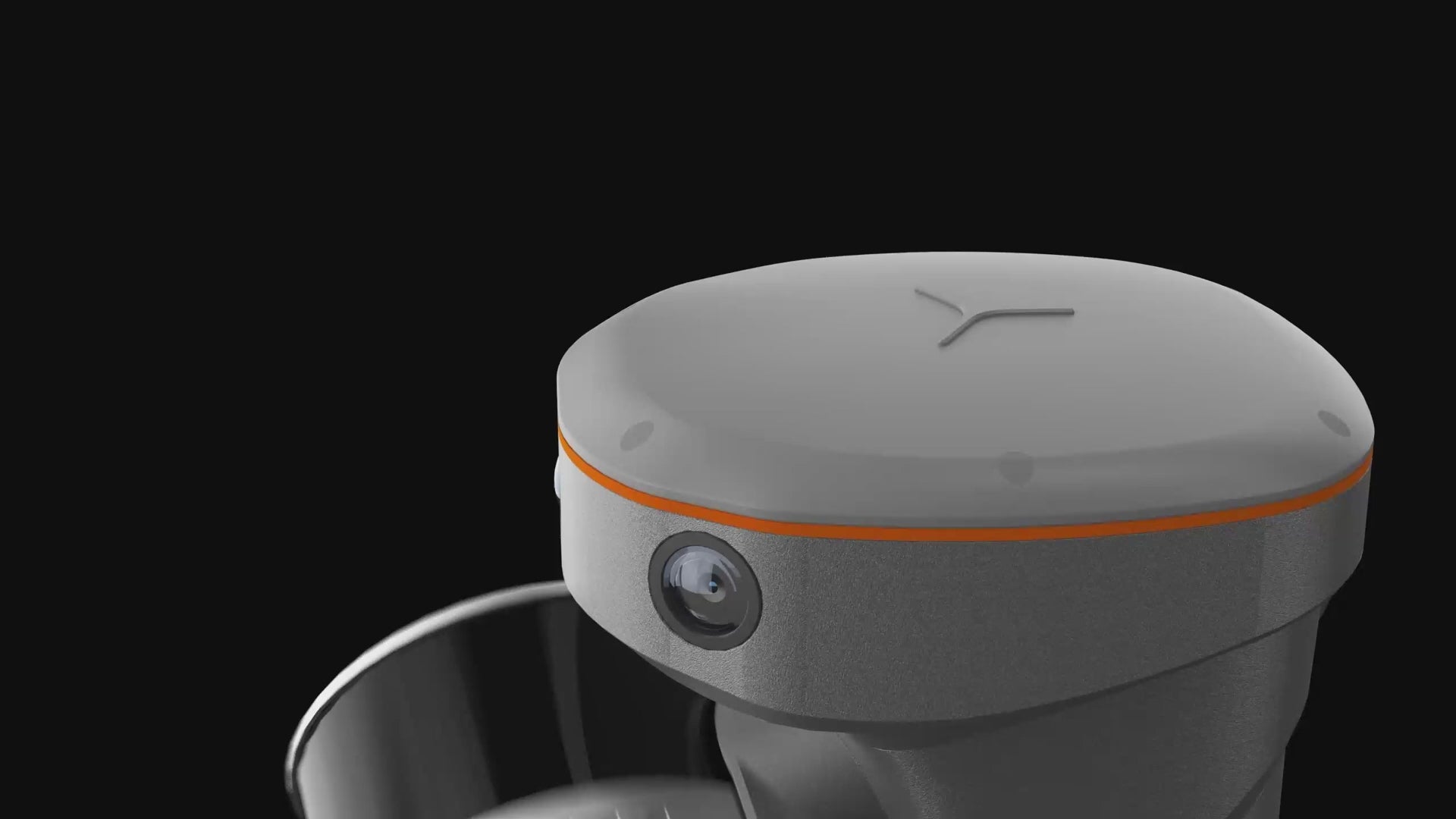

Achieve 5 cm absolute measurement accuracy with the 4th generation GNSS antenna and high-precision LiDAR. The RS10 delivers reliable data for detailed architectural surveys and complex infrastructure projects.
The RS10 creates geo-referenced point clouds directly in the field with real-time SLAM capabilities. It provides immediate feedback on collected data, allowing for on-the-fly adjustments to ensure complete coverage.
Eliminate the need for traditional loop closure with integrated GNSS and SLAM technologies to simplify field data collection and reduce project completion time and effort.
Use the RS10 for a wide range of applications, from BIM and forestry to power line inspection and underground mapping. Its versatility makes it an invaluable tool for professionals in various fields.
The RS10 streamlines your workflow with the SmartGo and CoPre software for real-time data visualisation and point cloud processing. It supports efficient and accurate data management from collection to modelling.

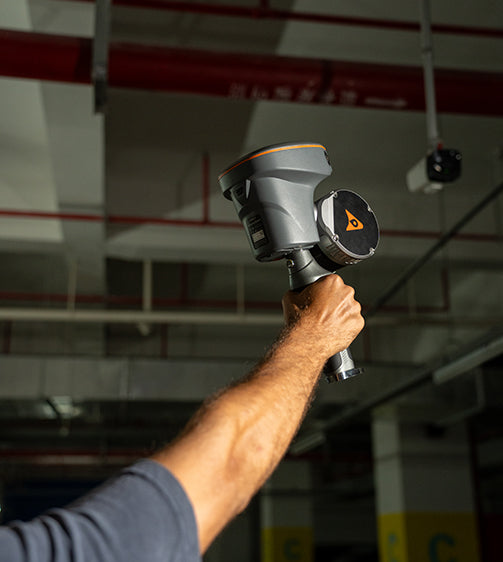

Operate in challenging environments with the IP64-rated, lightweight RS10. The robust design ensures reliability and ease of use in diverse conditions.
Use Cases
As-Built Surveying
Utility Inspection
Augmented Topographic Surveying
Contactless Survey
Tried & tested
CHCNAV RS10 / RS30
Handheld SLAM Scanner with RTK GNSS
Positioning
- GNSS : Full GNSS
- Absolute accuracy: <5 cm H / <5 cm V
- Relative accuracy: <1cm
Laser Scanner
- Channels : 16 (RS10) or 32 (RS30)
- Range : 120 or 300m
- Scan Rate : 320,000 or 640,000 Hz
- Field of View (FOV) : 210° x 170°
- Returns : Up to 2
Physical
- Weight : 1.7 - 1.9kg (including battery)
- Data storage : 512GB
Additional Sensors
- Camera : 15MP (3 x 5MP)
Downloads & Resources
Access official documentation, manuals, and datasheets.
Download Datasheet (PDF)Frequently asked questions
What can the RS10 or RS30 be used for?
Handheld laser scanners are used for capturing detailed 3D measurements and models. The RS10 is widely used in surveying, construction, and engineering, building information modelling (BIM), construction verification, industrial inspection, heritage preservation, forensics, and any task requiring accurate 3D spatial data.
What factors should be considered when choosing a handheld laser scanner?
Consider factors like scanning range, resolution, portability, ease of use, compatibility with software, and the specific needs of your project to ensure you select the right scanner for your application.
How do handheld laser scanners integrate with other surveying tools?
The RS10 already has a built-in GNSS RTK receiver. It can be used alongside total stations, and other surveying equipment. Data from handheld scanners can be integrated into comprehensive surveying workflows for enhanced project outcomes.
What makes the RS10 ideal for indoor and outdoor surveying?
The RS10 integrates GNSS RTK, laser scanning, and visual SLAM, providing precise data collection even in areas with weak or no GNSS signals.
How does the RS10 / RS30 simplify data collection?
The RS10 features real-time SLAM mapping and an efficient loop-free workflow, reducing project completion time and effort.
