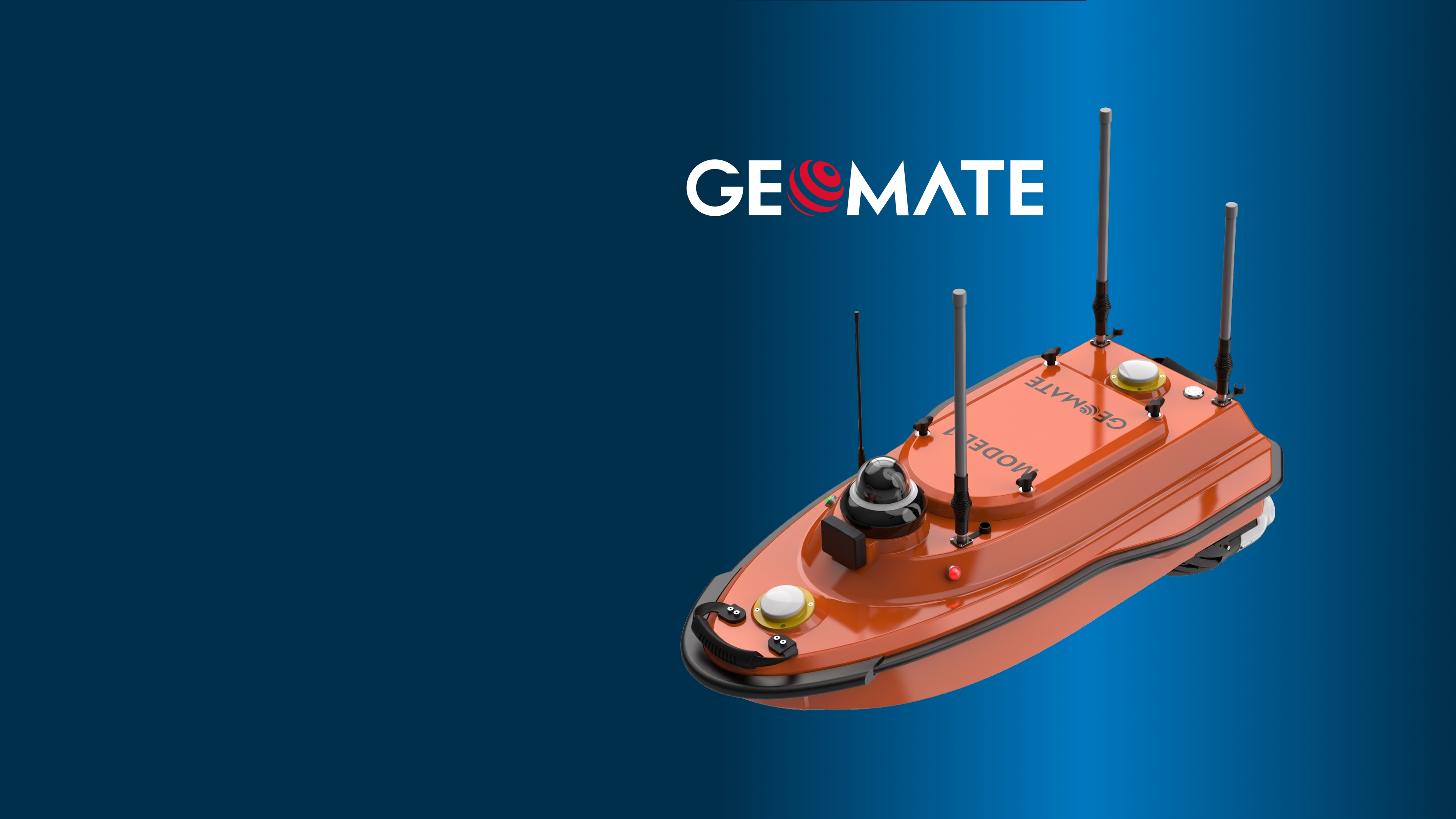

GEOMATE MODEL 1 PRO
High Performance & Secure Origin,
Cost-Effective Single Beam USV
Cost-Effective Autonomous USV
The Model 1 Pro is an autonomous USV engineered for high-performance bathymetry in shallow environments. It combines a robust carbon fiber design with a fully integrated single-beam echosounder.
What sets the Model 1 Pro apart is its navigation stability. By utilising GNSS RTK paired with Inertial Navigation Systems (INS), the vessel maintains precise positioning and data integrity, even when satellite signals are obstructed by bridges or complex infrastructure.
Key Features
Lightweight
Only 10kg and just over 1m in length for easy transportation and operation
GNSS+INS Positioning
Precise positioning and heading, ensuring an accurate survey
Single Beam Echosounder
Providing accurate depth measurements
Android-based Software
Ensuring ease of usability, and support for our custom AnyDesk instance for getting you out of those tricky "it's this button!" moments
Features
The Model 1 Pro USV features a one-piece moulded carbon fibre hull ensuring both strength and impact resistance. The weight and design allows for easy single-person transport and deployment.
With a single-beam echosounder, you can ensure delivery of reliable and accurate depth measurements. Its integrated water temperature sensor corrects sound velocity in realtime for enhanced depth measurement performance.
Minimise downtime with a titanium alloy mesh guard and hybrid water pressure conversion system that reduce the risk of aquatic vegetation entanglement. The system alerts operators if an obstruction is detected, protecting the motor during critical missions.
Engineered with high-sensitivity, anti-interference transducers and adaptive bathymetric algorithms, the Model 1 Pro adjusts automatically to variable water terrains, delivering high-resolution data in complex survey scenarios.
The Model 1 Pro’s remote controller comes pre-installed with the Android-based EasySail software, removing the need for external computers. The software includes real-time video transmission, parameter monitoring, and an integrated suite for path planning, data logging, and processing.
Maintain stable data and control links through 4G connectivity and 2.4 GHz remote communication. Easily switch between SIM and manual control modes for seamless operations in diverse environments.
Use Cases
Bathymetric Surveys
Inland Waterway Mapping
Riverbed Mapping
Reservoir Mapping

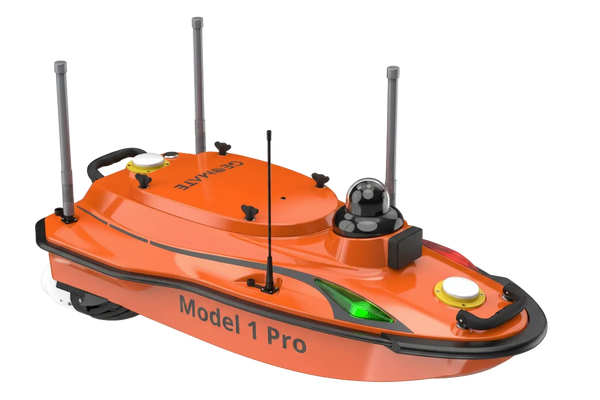

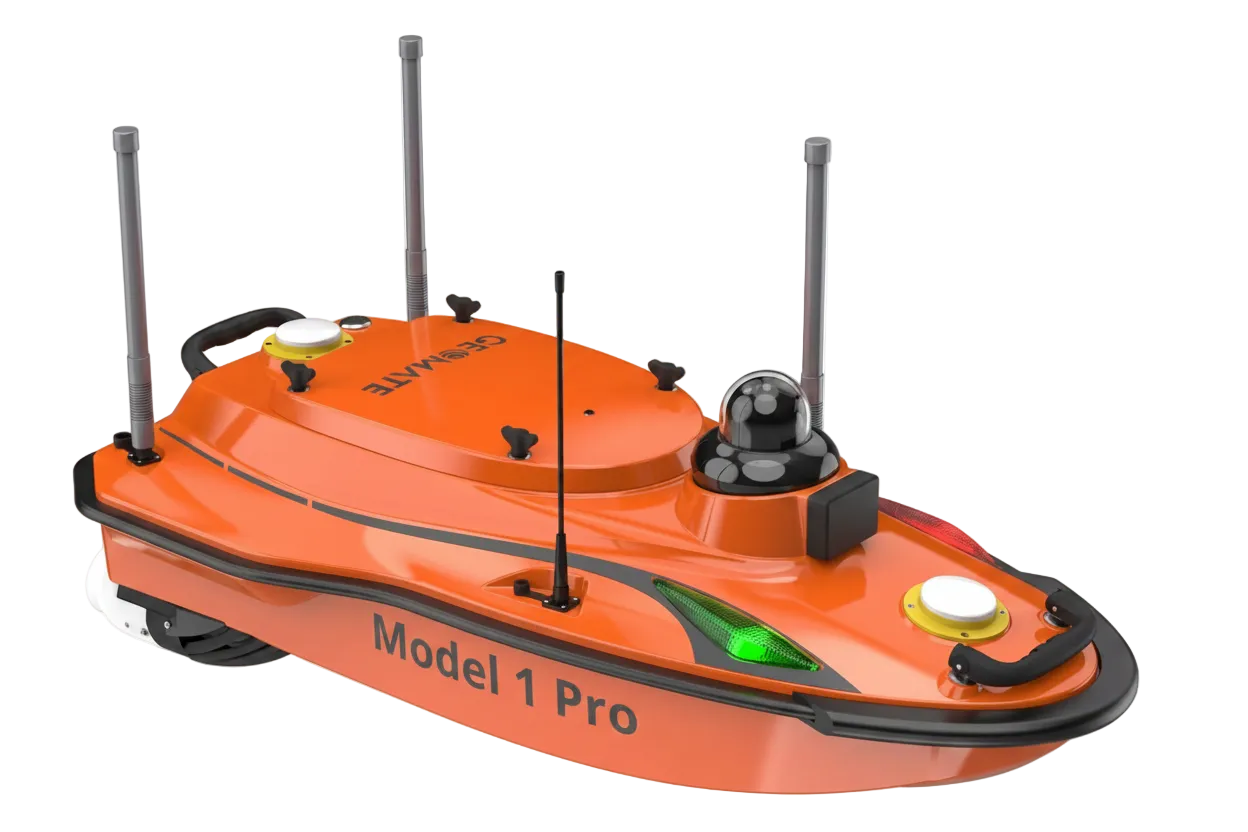

GeoMate Model 1 Pro
The Most Cost-Effective Single Beam USV
Performance
- Max Speed : 7 m/s
- Payload Capacity : 35kg
- Positioning : Multi-Constellation GNSS + IMU
Echosounder
- 200Hz Single Beam
- Range : 0.1 - 200m
- Accuracy : ±0.01 m + 0.1% x D
Sensors
- Camera : 360° video
- Obstacle Avoidance : Yes
Downloads & Resources
Access official documentation, manuals, and datasheets.
Download Datasheet (PDF)Frequently asked questions
Is a USV really a cost-effective system?
Yes. The Model 1 Pro enables affordable bathymetric surveys using a single-beam echo sounder. It is designed for efficient and cost-effective data collection in lakes, rivers, reservoirs, and coastal areas.
What types of waters can the Model 1 Pro operate in?
The Model 1 Pro is designed for surveying lakes, inland rivers, reservoirs and small, close-to-shore coastal areas, including shallow and challenging environments.
How energy efficient are the motors?
The Model Pro uses DC-injection rotary motors with 40% higher energy conversion efficiency, ensuring durable and reliable performance.
What is the range of the remote control?
The Model 1 Pro remote control is supported up to 1km for reliable long-range operation. With strong 4G network coverage, unlimited distance is possible.
This would be my first use of the Model 1 Pro, and even hydro surveying. How can PQS Tech help?
At PQS Tech, we are built on a foundation of exceptional customer support. Whether you need us to train your team to capture surveys independently, or you prefer a fully managed service where we complete the work for you, we have a solution to fit your needs.
