Archer 4 GNSS Expansion Pod | Centimetre-Level RTK Mapping Module

Transform Your Archer 4 into a High-Precision Survey Rover

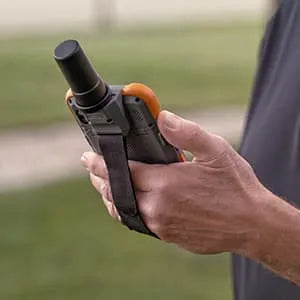

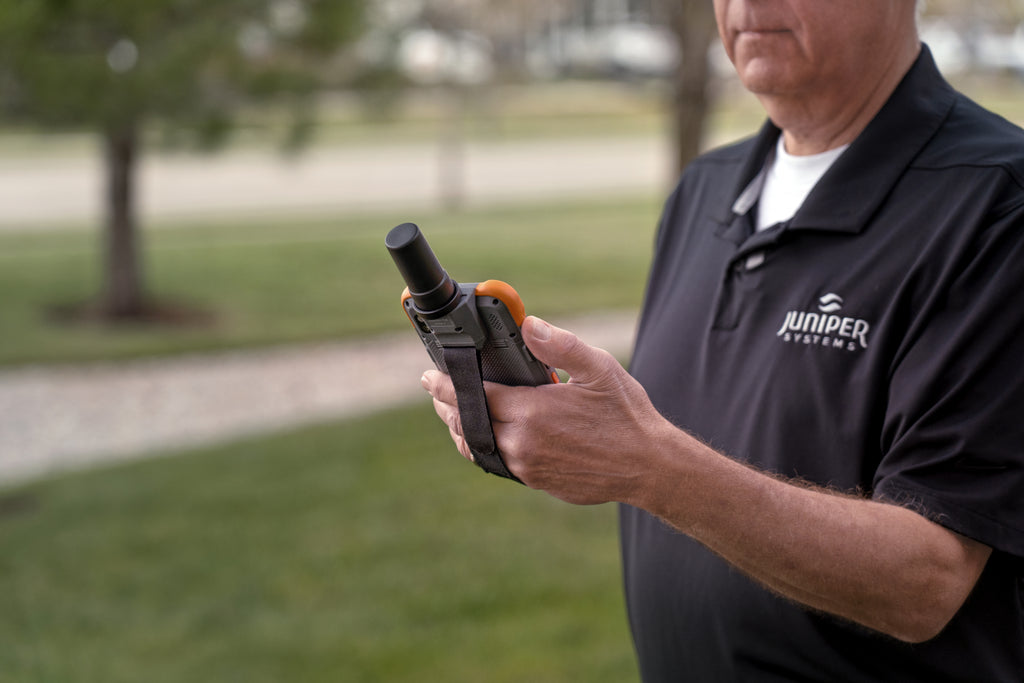

The Juniper Archer 4 GNSS Expansion Pod is a professional-grade, bolt-on module designed to provide the Archer 4 handheld with survey-grade accuracy. By eliminating the need for external antennas or bulky Bluetooth receivers, this pod creates a seamless, all-in-one solution for centimetre-level data collection.

Precision Performance in the Palm of Your Hand

Equipped with a high-performance helical antenna and multi-frequency GNSS engine, the GNSS Pod allows you to achieve 1–2cm accuracy (RTK Fixed) directly on your Archer 4. It tracks all major satellite constellations, ensuring a fast and reliable fix even in demanding environments like urban canyons or under dense tree canopy.

Why Add the GNSS Pod to Your Archer 4?

• Seamless Integration: The pod bolts directly to the rear of the Archer 4, using a ruggedised pogo-pin interface for data and power. No cables to snag and no extra batteries to charge.

• RTK Ready: Connect to your local NTRIP caster or RTK network via the Archer 4’s internal 5G/Wi-Fi connection for real-time centimetre precision.

• Multi-Constellation Tracking: Access GPS, GLONASS, Galileo, and BeiDou signals for superior satellite geometry and reduced signal loss.

• Ruggedised for the Field: Like the Archer 4, the GNSS Pod is IP68 rated, ensuring it remains fully waterproof and dustproof while in use.

• Simplified Workflow: Use the Archer Connect utility to pass high-precision NMEA data directly to your preferred GIS applications, including ArcGIS Field Maps, Uinta, or PointMan.

Technical Specifications:

• Accuracy: RTK Fixed: 1-2cm | SBAS: <0.5m

• Channels: 184-channel high-sensitivity engine

• Constellations: Multi-frequency GPS, GLONASS, Galileo, BeiDou

• Mounting: Secure bolt-on interface for Archer 4

• Power: Powered directly by the Archer 4 host device

What’s in the Box?

• Juniper Archer 4 GNSS Expansion Pod

• Integration Hardware (Mounting Screws)

• Protective Connector Cover

• 1-Year Manufacturer Warranty
